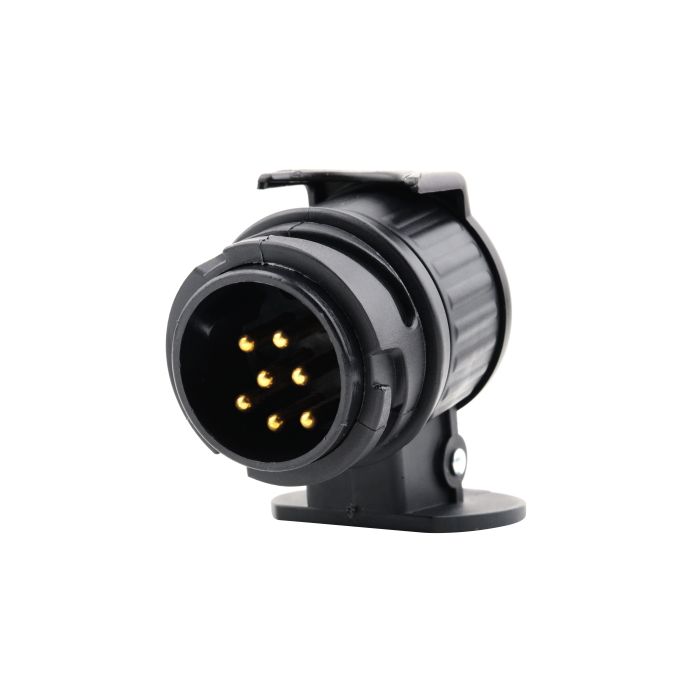

13 Pin to 7 Pin Trailer Adaptor

13 Pin to 7 Pin Trailer Adaptor

Features:
Suitable for European standard trailer.
Establishes a secure connection between your major vehicle and the additional trailer; Transfers the electronic signal lights from the vehicle to trailer.
Converts the 13-pin socket on your car to the 7-pin female socket.
Supplies power to your caravan, towing and truck.
Slim line design: same diameter as a normal trailer plug and just over half the length.
Plastic housing prevents rusting and enhances appearance.
Waterproof for all road and weather conditions.

Specifications:
Item Type: Electrical Plug & Sockets
Item Name: 13 To 7 Pin Adapter
Material: Plastic
Color: Black
Input: 12V
Item size: 4(D) * 7(H)cm / 1.6(D) * 2.8(D)in
Package size: 16.5 * 10.5 * 5cm / 6.5 * 4.1 * 2.0in
Package weight: 95g

Wiring configuration:
7 Pin Lighting Connections - 12 N Black Cable Function
Pin  Wire Color  Function
1  Yellow        L / H Direction Indicator
2  Blue          Rear Fog Lamps
3  White         Earth Return
4  Green         R / H Direction Indicator
5  Brown         R / H Tail & No. Plate Lamp
6  Red           Stop Lamps
7  Black         L / H Tail & No. Plate Lamp

13 Pin Lighting Connections - Cable Function
Pin  Wire Color  Function
1  Yellow         Left Indicator
2  Blue         Fog Light
3  White         Earth Return
4  Green         Right Indicator
5  Brown         Right tail / Side Light
6  Red           Brake / Stop Lights
7  Black         Left tail / Side Light
8  Pink          Reversing Light
9  Orange        12V Permanent power from battery
10  Grey         12V Ignition on (Battery charging or Fridge)
11  White / Black  Earth for Teminal 10
12  White / Blue  NOT usually used
13  White / Red  Earth for Teminal 9"

Package includes:
1 x 13 To 7 Pin Adapter
