Deutsch DT Series 6 Way Connector Kit with F Crimp Contacts

Where the DT6 fits in vehicle wiring

The DEUTSCH DT6 is a 6-way sealed connector kit from the DT Series, the all-rounder of the range. It is a popular choice for accessory and trailer looms, multi-function lighting and engine or transmission sub-harnesses.

Being sealed, it handles water, dust, mud and vibration far better than open spade or bullet connectors, which is why it is used across trucks, 4WDs, farm and mining gear.

Supplied with F crimp (stamped and formed) contacts, the cost-effective choice when you are making up a number of connections.

Specs at a glance

• Series: DEUTSCH DT
• Ways: 6
• Contacts: size 16, rated up to 13A
• Wire range: 0.5–2.0mm² (14–20 AWG)
• Environmentally sealed when fully assembled

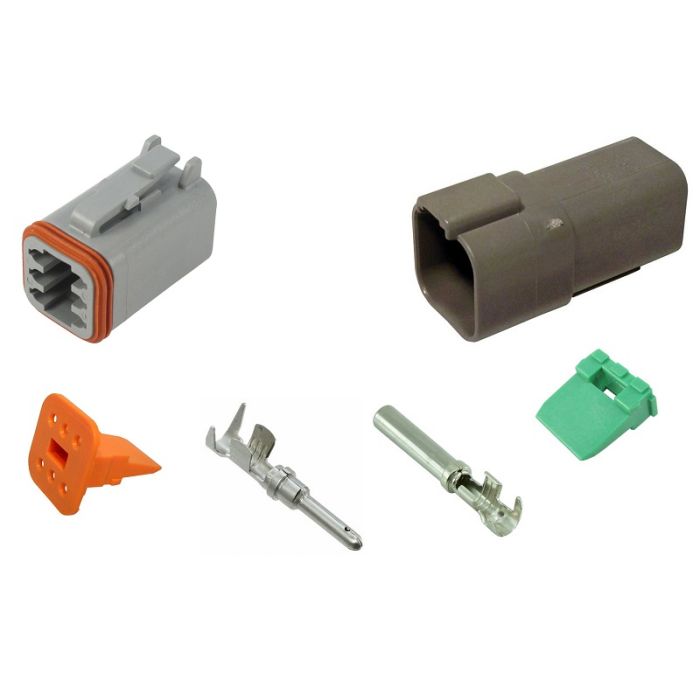

What comes in the DT6 kit

• 1 x DT Series 6-way receptacle
• 1 x DT Series 6-way plug
• Wedgelocks to suit
• F crimp (stamped) contacts to suit
