Deutsch DTM6-1 DTM Series 6 Way Connector Kit

Where the DTM6-1 fits in vehicle wiring

The DEUTSCH DTM6-1 is a 6-way sealed connector kit from the DTM Series, the compact, lighter-duty member of the family. It is a popular choice for sensors, switch panels, ECU and data signals, and tight spots where a full-size DT housing will not fit.

Being sealed, it handles water, dust, mud and vibration far better than open spade or bullet connectors, which is why it is used across trucks, 4WDs, farm and mining gear.

Specs at a glance

• Series: DEUTSCH DTM
• Ways: 6
• Contacts: size 20, rated up to 7.5A
• Environmentally sealed when fully assembled

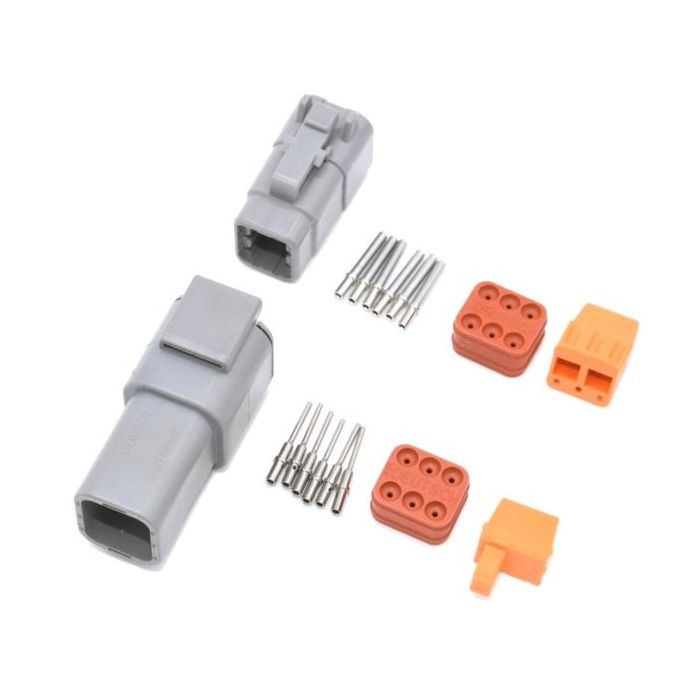

What comes in the DTM6-1 kit

• 1 x DTM04-6P receptacle
• 1 x DTM06-6S plug
• 6 x 0460-202-20141 pins
• 6 x 0462-201-20141 sockets
• 1 x WM6P wedgelock
• 1 x WM6S wedgelock
