Deutsch DTM12-2 Series 12 way Connector Kit with Purple Band Terminals

Where the DTM12-2 fits in vehicle wiring

The DEUTSCH DTM12-2 is a 12-way sealed connector kit from the DTM Series, the compact, lighter-duty member of the family. It is a popular choice for control boxes, instrument and switch-panel looms, and multi-signal harnesses where space is tight.

Being sealed, it handles water, dust, mud and vibration far better than open spade or bullet connectors, which is why it is used across trucks, 4WDs, farm and mining gear.

Supplied with purple band DTM contacts, ready for the full 12 positions.

Specs at a glance

• Series: DEUTSCH DTM
• Ways: 12
• Contacts: size 20, rated up to 7.5A
• Environmentally sealed when fully assembled

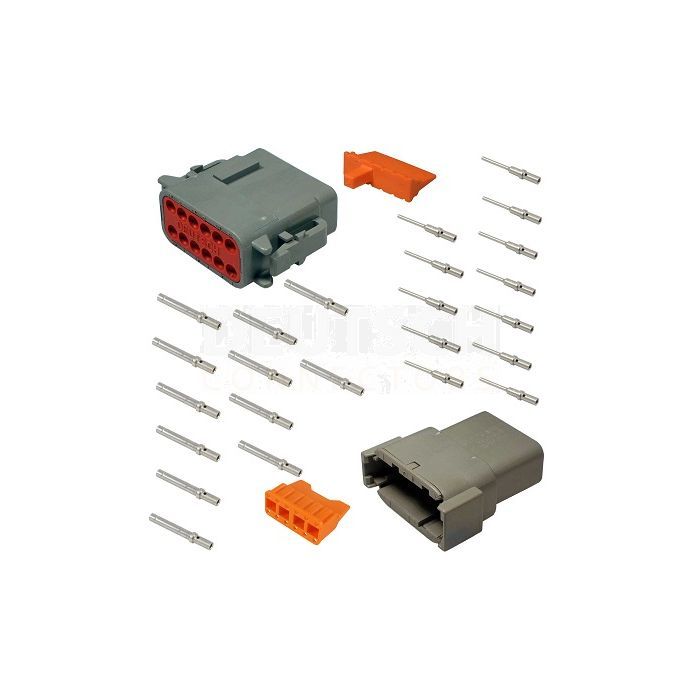

What comes in the DTM12-2 kit

• 1 x DTM04-12PA receptacle
• 1 x DTM06-12SA plug
• 12 x 0460-010-20141 purple band pins
• 12 x 0462-005-20141 purple band sockets
• 1 x WM12P wedgelock
• 1 x WM12S wedgelock
