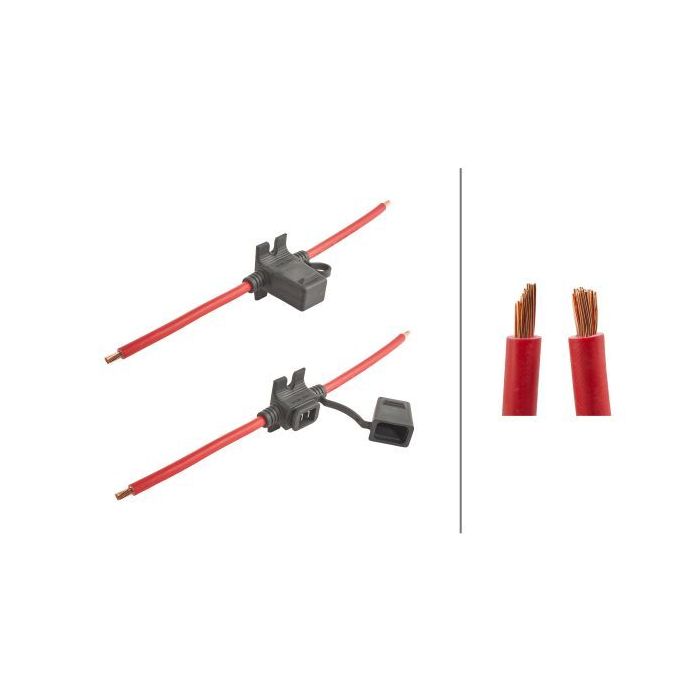

Hella 8JD743557111 Fuse Holder, For Jcase

Hella 8JD743557111 Fuse Holder, For Jcase

Genuine Hella fuse holder, for jcase for automotive and commercial vehicle wiring.

Fuse Holder - for JCASE fuse - Voltage to: 32V - red - with splash-water protection - Quantity: 1

Whenever the upgrade or conversion of an electrical system requires additional protection against overload (e.g. when integrating an additional consumer), the fuse holder acts as a connection between the line and the fuse link. The product variety is at least as broad as your possible applications. Depending on requirements, variants can be used for a wide range of fuse types - with integrated cable, cover cap or even rubberised full sealing for maximum protection against moisture.

Features

• Current strength to: 60A
• Cross Section [mm²]: 8.3mm²
• Length: 254mm
• Wide range of products for numerous applications
• Pragmatic safeguarding solutions for smaller upgrades and conversions
• Easy handling
• Splash-proof variants available
• Original equipment quality

Specifications

• Part number: 8JD743557111
• Hella number: 8JD 743 557-111
• Barcode (EAN): 4082300285178
• Brand: Hella
• Colour: red
• Cross Section: 8.3 mm²
• Current Strength to: 60 A
• Fuse Type: for JCASE fuse
• Housing Colour: black
• Housing material: Rubber
• Length: 254 mm
• Material: Copper
• Temperature range to: 125°C
• Voltage to: 32 V

with splash-water protection Assy./disassy. by qualified personnel required!
