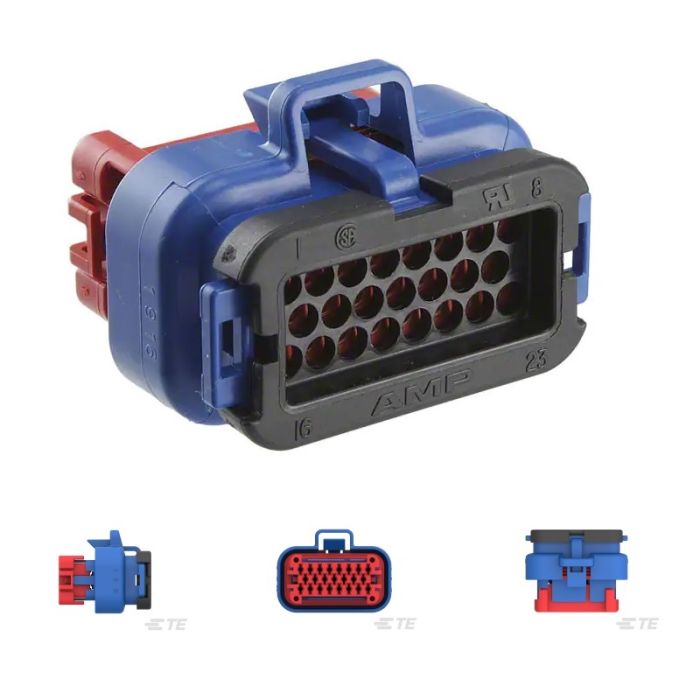

TE Connectivity AMPSEAL 770680-5 23 Circuit Connector Blue
Special Price
$30.80
Regular Price
$35.00
In stock
SKU
770680-5
TE Connectivity AMPSEAL 770680-5 23 Circuit Connector Blue is available to buy in increments of 1
TE Connectivity AMPSEAL 770680-5 23 Circuit Connector Blue
TE Connectivity AMPSEAL 770680-5 23 Circuit Connector Blue
- Wire to device connectors
- Designed to withstand high-temperature environments
- Accepts contact size 1.3mm (up 17A gold, up to 8A tin)
- 16-20 AWG (1.25-0.50mm2)
- 23 Cavities
- Recetangular, thermoplastic housing
- Integrated latch for mating
- Integrated wedgelock confims contact alignment and retention
- Keyed according to colour to prevent mismating
Technical Specifications:
| Housing | Termoplastic |
| Seal | Silicone Rubber |
| Wedgelock | Thermoplastic |
| Contact Size | 1.3mm |
| Voltage | 250VAC |
| Contact Rating | 17A (gold), 8A (tin) |
| Shock | 50G |
| Insulation Resistance | 10 megohms |
| Operating Temperature | -40ºC to 125ºC |
| Manufacturer | IONNIC |
|---|
